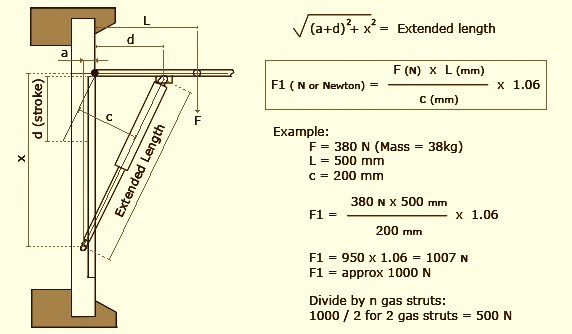

How to Determine the Correct Gas Strut Length and Pressure

Calculating the right gas strut length and force can be straightforward with the right approach. Here’s a simple method we recommend for selecting the appropriate gas struts for lids, doors, roof windows, awnings, and more.

Choosing the Right Length:
A good rule of thumb is to select a gas strut that measures approximately 55% of the door or lid's total height. For example, if the door is 1000mm high, a gas strut of about 550mm would be ideal. This means you can generally think of it as using a strut that is half the height of the door, plus a little extra.

Finding the Correct Position:
Once you’ve chosen the length, the next step is to determine where to install the strut. Use the table below as a guide to see typical fitting positions for various strut lengths. If your gas strut’s exact length isn’t in the table, approximate its position based on the closest matching length.

Need Assistance?
We know this process can sometimes be confusing, but we're here to help! We offer support and an installation and fitting service.

Contact us and we’ll make sure you get the right length, pressure, and end fittings to ensure your lid stays open just as it should.
